Name: Oil-Free Vacuum Pump
Brand: SterliTech
SKU: 167--0-11
Price: 250 USD
Availability: InStock

Oil-Free Vacuum Pump

Item #: 167--0-11

Manufacturer: SterliTech

Product Description

Rocker series pumps are driven by Piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.

Rocker series pumps are equipped with Prote™ filter cartridge which can prevent a large amount of liquid from being sucked into the pump by negligence. It can also filter particle and moisture to prolong the service life of pump.

Every motor of Rocker series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.

Features

International safety certification:

CE certification
CSA certification

Applications:

Filtration for microbiology test
Air sampling
Suspended solid test
Vacuum filtration

Specifications

	Air Flow Rate (lpm)	Max. Vacuum (inHg)	Max. Pressure	Tubing/Port	Weight	Motor	Noise
PILOT Economical	60Hz:20	22	0.25 bar (3.7 psi)	1⁄4in. Hose Barb	6.4 lbs (2.9 kg)	1⁄7HP	54 dB
PILOT Chemical Resistant	60Hz:37 / 50Hz:31	24	0.20 bar (2.9 psi)	1⁄4in. Hose Barb	10.2 lbs (4.6 kg)	1⁄5HP	NA
Gast	60/50Hz:34	25	4.1 bar (60 psi)	1⁄4in. NPTF to Hose Barb*	20.0 lbs (9.1 kg)	1⁄8HP	NA

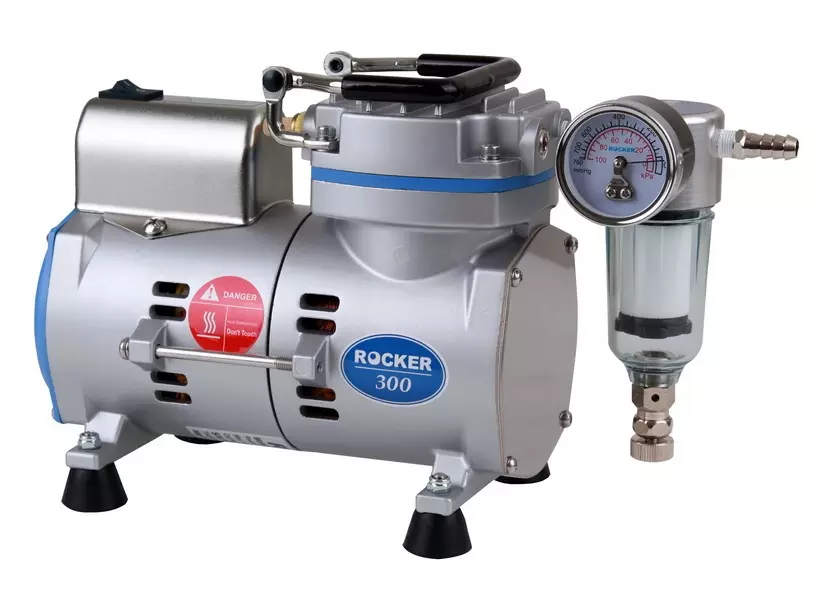

Rocker 300	60Hz:23 / 50Hz:20	26.8	NA	5⁄16in. Hose Barb	9.0 lbs (4.1 kg)	1⁄8HP	50 dB
Rocker 400	60Hz:37 / 50Hz:34	26.8	NA	5⁄16in. Hose Barb	11.5 lbs (5.2 kg)	1⁄6HP	52 dB
Rocker 300C	60Hz:23 / 50Hz:20	26.8	NA	5⁄16in. Hose Barb	9.0 lbs (4.1 kg)	1⁄8HP	50 dB
Rocker 800	60Hz:100 / 50Hz:80	26.4	NA	3⁄8in. Hose Barb	16.8 lbs (7.6 kg)	1⁄3HP	68 dB
Rocker 440 Air Compressor	60Hz:27 / 50Hz:25	NA	40-60 psi	NA	18.5 lbs (8.4 kg)	1⁄6HP	52 dB
Chemker 300 Vacuum Pump	60Hz:20 / 50Hz:18	26.3	NA	5⁄16in. Port Thread	11.0 lbs (5.0 kg)	1⁄8HP	50 dB
